RETRACTED: the guide resolution comparison was never run — all three cells were handed the same file

Status: retracted 2026-09-25, the same day it was published. A bug in the guide-fetch step sent every cell the experiment's own source control video instead of the VACE render it had just spent between 44 minutes and 3.8 hours producing. The three "guide" fixtures were byte-identical. The resolution comparison the report claimed to make — and the decision rule it used to scope out the 14B half — compared a file against itself.

What happened

The original report concluded that rendering a VACE guide at H3's native 1312×736, rather than at 832×480 and upscaling, changes nothing: the two arms came out 0.11 apart on a scale where changing the seed moves 15.85, a 144-to-1 margin. On that margin it declared the resolution factor dead and cut cell 4 (14B native) from the design.

The 0.11 was not a small effect. It was two renders of the same input.

render_vace_guide.py picked the guide out of ComfyUI's history with a first-match-wins scan:

def find_output(entry):
    for node_out in (entry.get("outputs") or {}).values():
        for key in ("videos", "gifs", "images"):
            for item in node_out.get(key, []) or []:
                if str(item.get("filename", "")).endswith(".mp4"):
                    return item

ComfyUI's history[...]["outputs"] reports LoadVideo alongside SaveVideo. Node 6 is the graph's LoadVideo, and it reports back the source file it opened, tagged type="input". Node 6 sorts before node 14. So the scan returned the graph's input, every time:

=== cell1 1.3B upscaled guide (4c906d20-cc0e-42a8-b8e5-a64a042e6b33) ===
  outputs node order: ['6', '14']
    node   6 images  vace_src_props.mp4  type=input
    node  14 images  vace_1p3b_upscaled_00001_.mp4  type=output
  -> find_output() would return: node 6 vace_src_props.mp4 (type=input)
=== cell2 1.3B native guide (b49ad12e-22c8-4479-9afa-10ec9f7d4f8a) ===
  -> find_output() would return: node 6 vace_src_props.mp4 (type=input)
=== cell3 14B upscaled guide (14a51a8a-1739-46a2-b612-f3bfc0bba3d8) ===
  -> find_output() would return: node 6 vace_src_props.mp4 (type=input)

All three cells then logged fetched guide-out/vace_guide_raw.mp4 (1130241 bytes) — the same byte count, because it was the same file. Its SHA-1, base64 encoded the way Immich stores it, is sJ2Doe08vmmeuAeqETCTsi+Xasc=, which matches the asset sitting in the h3-exp-025 guide videos album under the name vace_guide_raw.mp4.

The bug was invisible because the file it substituted is a valid guide. A re-encode of the control video is a real 294-frame mp4 at the right dimensions, so it passed the frame-count check, passed the trim, passed H3FunControlApply's token-count gate, and produced eight plausible H3 renders that no downstream check could distinguish from a correct run.

The evidence that the original numbers were measuring nothing

The published report defended itself against exactly this possibility, and the defence was wrong in an instructive way. It argued the instrument could see the guides apart because "the guide files are byte-distinct (verified by checksum in Immich; no two assets in the run share one)".

They are byte-distinct. Every cell burns an arm label into its egressed copy before upload, so arm1 1p3b upscaled s44 and arm3 14b upscaled s44 are different files carrying different text over identical pixels. Checksum distinctness proved the labeller ran. It could never have proved the renders differed, and it was read as if it had.

Comparing the delivered guides by pixel content, with the burn-in strip cropped away:

0.04 apart is the same video twice. The 0.49 against the source is one lanczos re-encode.

The arms follow, matched seed:

Three arms that span two model scales and two guide resolutions sit inside 0.13 of each other. That is the residual nondeterminism of the H3 sampler on one fixed input, and it is the correct reading of the original report's headline 0.11.

What the cells actually rendered

The VACE renders were real. They ran, they cost what the report said they cost, and they are still on the box — they were simply never fetched. Pulling them from H3/exp025/ by the node-14 filenames ComfyUI recorded:

The comparison that should have been made separates by 2.78–3.70. The comparison that was made separates by 0.04. The experiment discarded a signal roughly 70× larger than the one it measured.

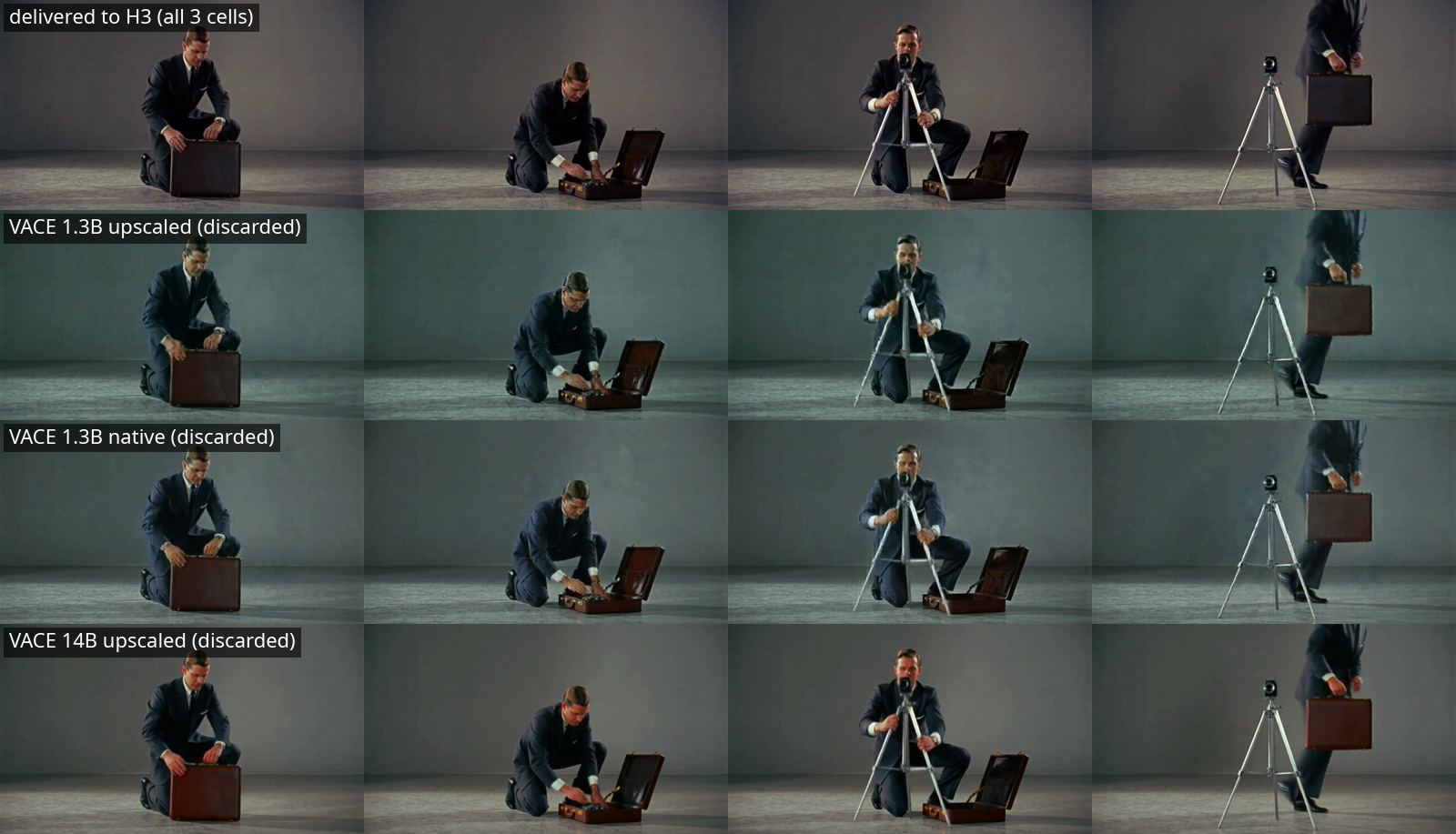

Row 1 is the file all three cells delivered to H3; rows 2–4 are the VACE renders they produced and dropped. Columns are t = 2s, 5s, 8s, 11s.

Worth stating because it cuts against a tidy retraction: the four rows look very similar. WanVaceToVideo here runs at strength 1.0 over a dense control video, which is close to a reconstruction pathway — the man, the briefcase and the tripod appear in the same places at the same times in all four. The 2.78–3.70 separation is real and 70× the noise floor, but it is a texture-and- grade difference, not a different scene. Whether a difference that size is one H3 could read through control_video is exactly what this experiment was built to answer and did not.

What survives

The cost figures. The guide renders genuinely ran at those durations; only their output was mis-fetched. 1.3B upscaled 2,623s, 1.3B native 13,635s (5.2× compute for 2.42× the pixels), 14B upscaled 10,014s. The arm render times (943–1,123s, ~77–91× real-time) and the finding that arm cost is insensitive to what the guide is are unaffected.

One observation about dense RGB guides, in weakened form. What H3 received was vace_src_props.mp4 — the real source footage, trimmed and scaled to 1312×736. That is a dense RGB video guide, and a sharper one than any VACE render. Against it, H3 still produced no briefcase at either seed, no tripod at the tripod's time, and less motion than the null (0.51/0.89 vs 0.64/0.84) while the OpenPose skeleton arm moved 4.33. So "H3 does not take props or choreography from a dense RGB guide through control_video, and the skeleton pathway is what carries choreography" still has one N=2 observation behind it. It is now an observation about the source footage as guide, which was never the arm anyone designed.

The earlier result this was testing. The 2026-09-18 finding is untouched; this run simply failed to test its escape hatch.

What is void

• The resolution comparison. Cells 1 and 2 received identical inputs. There is no evidence here either way about guide resolution.
• The 144-to-1 margin, and the decision rule built on it.
• The scope cut of cell 4. It was foreclosed by a result that does not exist. The 2×2 design is open at three of four cells.
• The claim that model scale is untested "because the resolution factor is dead." Scale is untested, but for the ordinary reason.
• The guide-vs-guide analysis — "0.36 of guide difference produced 0.23 of output difference at full resolution", and the gradient-variance reading about lanczos ringing. Both were computed on two copies of one file.
• The rod artifact reading. The rod appears at seed 44 in arms that were all given the source footage. Whatever it is, it is not evidence about VACE guides at two resolutions.

The fix

find_output() now refuses anything that is not a render:

                if item.get("type") != "output":
                    continue

A render-less graph now returns None and fails the task loudly, where before it silently returned the input. On top of that, the fetched guide is hashed against the graph's own LoadVideo source and the task aborts if they match, so the specific substitution that happened here cannot recur even if a future graph reports its nodes in some other order.

Both are covered by concourse/scripts/test_render_vace_guide.py, driven by the exact history payload ComfyUI returned for cell 3. The old implementation fails those tests — checked, rather than assumed:

OLD find_output returns: vace_src_props.mp4 type=input
=> OLD code picks the INPUT. The new test fails against it: the test is not vacuous.

The lesson worth keeping

Every guard this pipeline had was a guard on shape. Frame count, dimensions, token count, arm-graph hash distinctness, per-asset checksum distinctness in Immich — the run passed all of them while three arms shared one input, because the wrong file was the right shape. The checksum check in particular read as provenance and was actually a check on the burn-in labeller.

The guard that would have caught it on day one is the cheap one: assert the output of a render is not equal to its input. That is now in the script.

Nothing in this line should be read as a resolution or scale result until the 2×2 is re-run on the fixed fetch.

Files

Graphs are unchanged and still in files/2026-09-25-h3-guide-resolution-appearance-prior/. The Immich albums (h3-exp-025 controls, arm1 VACE 1.3B upscaled, arm2 VACE 1.3B native, arm3 VACE 14B upscaled) hold the renders as produced; their _294-suffixed guide fixtures are all the same source video under four names, which is the bug rather than provenance.
