A longer reference video buys consistency by copying the reference

Status: complete. Twenty arms, five reference durations, four seeds, one prompt. Seed-to-seed variation falls from 31.5 with no reference to 1.4 at 124 frames — but the arms that are most consistent are the ones reproducing the reference clip's choreography, not the ones holding a character while acting independently.

The question

An earlier report established that feeding MiniMaxH3ReferenceToVideo a prior render as ref_videos pins a character across seeds. It left one thing open: how long does the reference have to be? The clip used there was 90 frames. Nobody had tested whether 20 would do, or whether 124 would do better.

The practical stake is cost. Reference tokens are not free, and if a two-second clip locks identity as well as a four-second one, every downstream shot gets cheaper.

Method

Five arms crossed with four seeds — 43, 44, 45, 46 — for twenty renders.

The arms are reference durations: 0 frames (no ref_videos input at all), 22, 56, 90, and 124. Every reference is the same source clip, an earlier H3 render of this prompt's subject, trimmed to the first N frames and scaled to 832×480. The target shot is 124 frames in every arm, so arm 4's reference is exactly as long as the shot being generated.

One prompt, asserted byte-for-byte in the builder: a 1960s woman in a colour-blocked red/white/blue A-line mini dress, full body, static camera, plain grey wall. No pose track in any arm — H3FunControlApply is purged from all twenty graphs, so the only conditioning is the prompt and the reference.

Three measurements, all mean absolute pixel distance on grayscale frames at temporal stride 8:

• Seed variation — mean over all six seed pairs within an arm. Low means the seed stopped mattering.
• Temporal motion — mean frame-to-frame difference within a clip. Guards the failure mode where consistency is achieved by freezing the subject.
• Distance to reference — mean distance from each render to its own trimmed reference clip. Guards the failure mode where consistency is achieved by copying.

What came back

Seed variation collapses between 22 and 56 frames. The null arm is at 31.5, 22 frames barely moves it to 23.6, and then 56 frames drops it to 3.9 — an 87% reduction from baseline, achieved entirely in the step from 22 to 56. Going further to 90 does not improve it (5.38, slightly worse than 56), and 124 pushes to 1.37.

Temporal motion goes up monotonically with reference length, 0.52 → 4.40. Whatever is happening, it is not the flattening failure — the longer the reference, the more the subject moves.

The grid

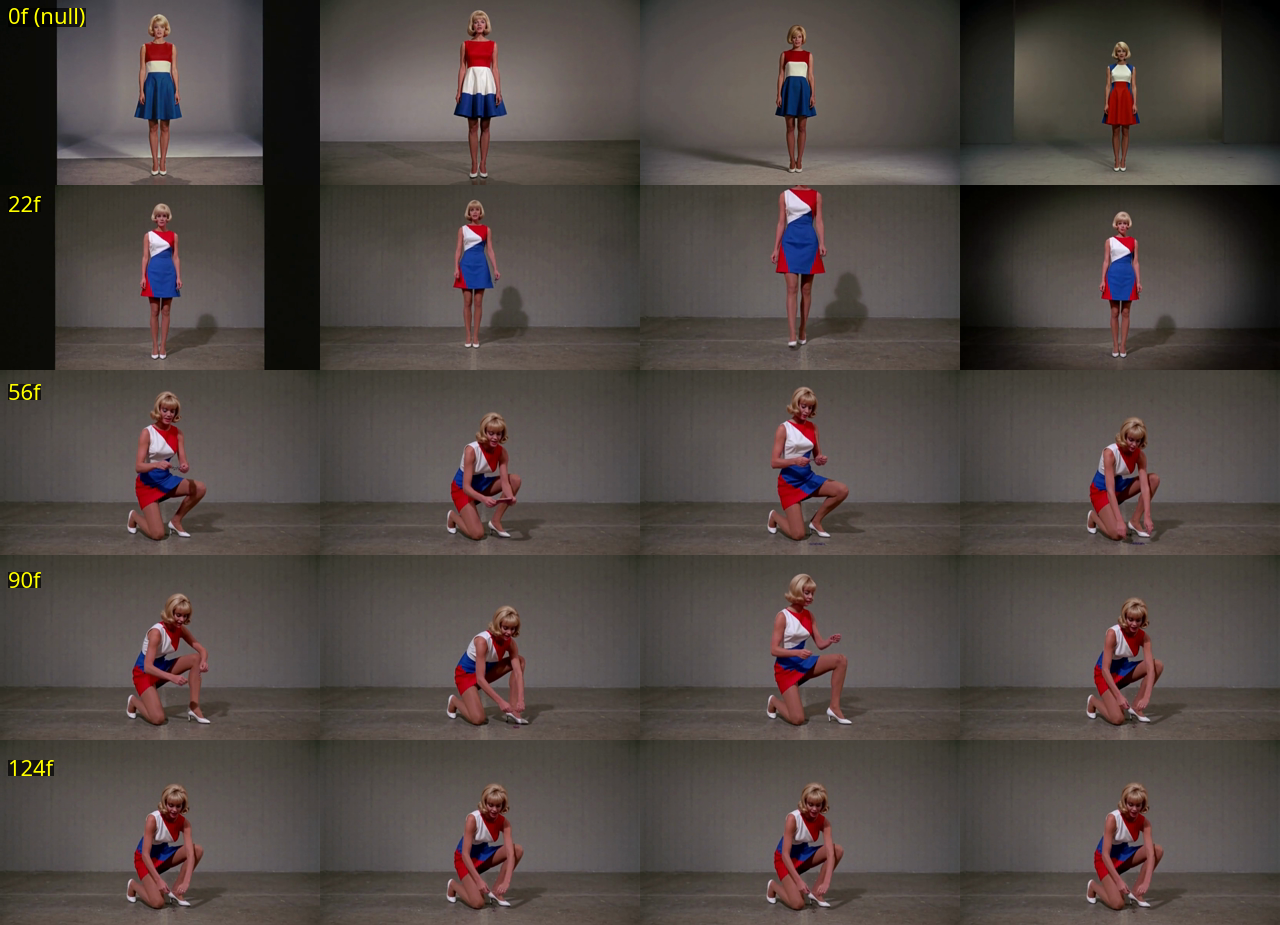

Rows top to bottom: 0f, 22f, 56f, 90f, 124f. Columns are seeds 43–46, all at the same frame index.

The top two rows are a standing woman, and the four seeds disagree about her face, her lighting, and where the dress's colour blocks sit. The bottom three rows are a woman crouched on the floor reaching toward her shoe — and by 124f the four seeds are nearly indistinguishable.

That is the result the numbers were describing, and it is not the result the experiment was looking for.

Why the consistent arms are the suspicious ones

The reference clip is not a static character turnaround. It is a performance: the woman starts standing and crouches to the floor.

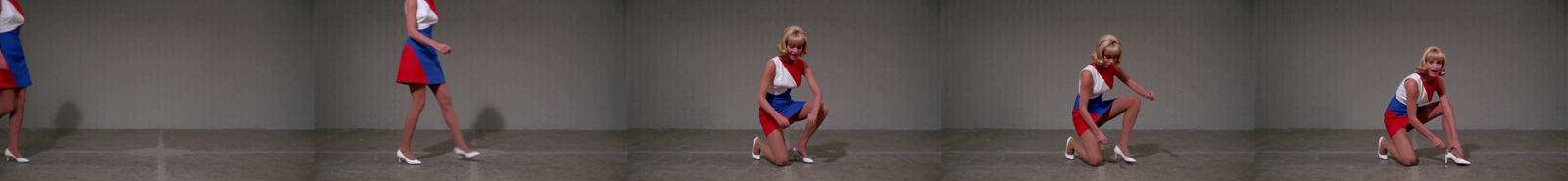

Left to right: frame 0 of the source, then the last frame of the 22f, 56f, 90f, and 124f trims. At 22 frames the clip has barely left standing. By 56 she is in a crouch, and by 90 and 124 she is down on one knee reaching toward the floor.

Line that up against the render grid and the arms stop looking like a consistency curve. The 22f arm — whose reference is still standing — produces standing women. The 56f, 90f, and 124f arms — whose references have crouched — produce crouching women. The reference's ending pose predicts the render's pose in every arm.

So the falling seed-variation number has two readings that this design cannot separate:

1. The reference pins identity, and longer references pin it harder.
2. The reference pins choreography, and the seeds agree because they are all reproducing the same motion.

The distance-to-reference column favours the second. It falls monotonically — 23.97, 10.24, 8.60, 5.09 — meaning each longer reference produces output that is pixel-closer to the reference clip itself. The 124f arm, whose reference is exactly as long as the shot, sits at 5.09. That is the copying signature, and it is strongest exactly where the consistency looks best.

The rising temporal-motion column fits the same story. The longer references end deeper into a crouch, so the renders that follow them have further to travel, and frame-to-frame difference goes up. Motion rising is not evidence of autonomy here; it is evidence of a borrowed trajectory.

What this does and does not establish

Established: reference duration below roughly 56 frames does not pin anything. The 22f arm is closer to the null arm than to any reference arm on every measure. Whatever mechanism is working, it needs more than about one second of reference to engage.

Established: the pose in the output tracks the pose the reference clip has reached. This was visible in all five arms and is the clearest signal in the run.

Not established: that a longer reference gives better identity consistency. Every arm's reference differs in two ways at once — how much identity information it carries and what pose it ends in — so the design cannot attribute the falling seed variation to either. The experiment confounded duration with choreography.

The earlier 90-frame result is not overturned; a reference does hold a character across seeds, and that finding rested on a comparison against a foreign guide rather than on duration. A same-day 2×2 on this same node reached the compatible conclusion from the other direction — a reference video moves the subject without replacing them. What this run adds is that the movement it supplies is the reference's own, and that the scaling question was asked with a fixture that could not separate the two.

What would answer it

A reference set where duration varies and ending pose does not: trim clips of 22, 56, 90 and 124 frames sampled from a static section of a turnaround, so every arm's reference ends in the same stance. If seed variation still falls with length, the duration effect is real. If it flattens out, the curve here was choreography all along.

Cheaper and worth doing first: re-run the 124f arm against a reference trimmed from a different subject's crouch. If the output crouches with a face from the prompt rather than the reference, that separates pose transfer from identity transfer in one render.

Cost

Sampling latency scales linearly with reference length — each additional 34 reference frames costs about 34 seconds:

A 124-frame reference more than doubles render time for a 124-frame shot. At 212s for 5.17s of video that is ~41× real-time; the null arm is ~18×.

Peak VRAM held at 13.8–14.3 GiB across all arms — 56–58% of the 24 GB card. Reference length does not move it meaningfully, so the cost of a longer reference is time, not memory.

Twenty arms of GPU work is about 50 minutes. Eleven builds across four branch pipelines were spent getting it, over roughly 16 hours of calendar time from first trigger to final egress, on a lab with seven experiment pipelines contending for one 3090.

Failed builds and their causes:

• Four builds lost to comfyui-local segfaults (SIGSEGV; container restart count reached 4). Each killed the in-flight prompt. A task that has submitted a prompt and is waiting on it does not notice: it holds gpu-lock and polls a prompt id that no longer exists until its own timeout. Two other experiments' builds were stranded the same way for over an hour each and had to be aborted by hand before the pool would turn over. Same fault pinned to a VideoVAE-before-H3 load order a day earlier.
• Two builds died on error acquiring lock: reset lock: exit status 128 — the pool resource's git push to concourse-locks failing on an SSH timeout to GitHub while the job sat in the acquire step. One had queued 2h19m before failing without ever running.
• One build rendered nothing in six seconds. ComfyUI's input/ directory does not survive container restarts. A restart mid-run removed char_ref_22/56/124.mp4 and left char_ref_90.mp4 truncated by one byte, so every ref-arm submission failed validation with Invalid video file while the null arm — which loads no video — kept succeeding. The fixtures are committed under workflows/refs/ with checksums; reinstalling from there is the fix, and a preflight that checksums fixtures against the repo before acquiring the lock would have caught it.

Splitting twenty arms across two smaller branches is what gets them through. A build needing 55 minutes of uninterrupted lock time loses the race against an hourly segfault; two builds needing ~45 minutes each (42m32s and 45m44s, both green) do not.

Files

Workflows are ComfyUI API-format graphs naming local checkpoints — they will not drag-and-drop into a fresh install without those models present. Seed-43 representative of each arm:

• noref_s43.api.json
• ref22_s43.api.json
• ref56_s43.api.json
• ref90_s43.api.json
• ref124_s43.api.json
• exp026_metrics.py — computes all three measurements from the rendered mp4s

All twenty graphs are generated by concourse/scripts/build_exp026.py in gavmor/comfyui-workflows. Renders are in Immich, one album per arm (noref_s43 … ref124_s46), 20 albums with distinct asset ids.
